InstanceGridForCustomWidget

• The InstanceGridForCustomWidget component is wrapper component that manages data fetching, filtering, sorting, pagination, and passes the processed data and configuration to InstanceGrid or InstanceGridV2 for rendering a customizable, attribute-driven grid.
• The component renders either: InstanceGrid: Classic grid (server-side pagination mode) InstanceGridV2: Modern grid with virtualization, supports both server and client modes for pagination mode.
• It displays the UI of InstanceGrid or InstanceGridV2, depending on widget configuration.
• Supports filtering, CSV export, bulk actions, quick edit, and QR sticker printing.
• It Can be used in dashboard, view, or home layout of a custom widget.

Props

1. configuration

   • Type: object
   • Description: Widget/grid configuration, including fields, filters, sort, page size, etc.

2. instanceTypeName

   • Type: string
   • Description: Name of the instance type being displayed.

3. canCreateInstance

   • Type: boolean
   • Description: Whether the user can create new instances.

4. numberOfLoadingRows

   • Type: number
   • Description: Number of skeleton rows to show while loading.

5. isSortable

   • Type: boolean
   • Default: true
   • Description: Enables or disables sorting functionality.

6. compact

   • Type: boolean
   • Description: Determines if the grid should use a compact layout.

7. gridDetails

   • Type: object
   • Description: Additional grid configuration (e.g., versioning, view config).

8. shrinkToFit

   • Type: boolean
   • Description: Adjusts column widths to fit the grid.

9. directRelatedInstance

   • Type: object
   • Description: Data for directly related instances.

10. sourceInstanceDetails

    • Type: object
    • Description: Details about the source instance for the grid.

11. relatedTypeName

    • Type: string
    • Description: The type of related instances displayed in the grid.

12. widgetId

    • Type: string
    • Description: The unique ID of the widget.

13. isFilterVisible

    • Type: boolean
    • Default: false
    • Description: Whether to show the filter UI.

14. baseUrl

    • Type: string
    • Description: Custom API endpoint for programmatic data fetching.

15. programData

    • Type: object
    • Description: Additional data to send with the custom program API call.

16. otherUIComponents

    • Type: function
    • Description: Function that returns additional UI components to render in the grid header.

17. isStandardGrid

    • Type: boolean
    • Default: true
    • Description: If true, uses standard grid data fetching; otherwise, uses custom program API.

18. widgetView

    • Type: string
    • Default: Grid
    • Description: Defines which grid version to render (Grid or GridV2).

Notes

• otherUIComponents allows you to inject custom buttons or controls into the grid header.
• For custom program API fetching, set baseUrl and programData and set isStandardGrid={false}.
• In case of fetching data through custom program then for sorting and pagination we have to pass data in key-value pair format.

Response Data Structure require for Grid V2 In case of fetching data through custom program

• Custom program response must be in below format

[
  {
    id: 'abc-123',
    name: 'Sample',
    attr1: 'foo',
    attr2: 42
    // ...other attributes as key-value pairs
  },
  // ...
]

Usage Example: Instance grid V2 - Fetching data through custom program

function InstanceGridV2CustomWidget(pageContext) {
  const { protrakUtils, protrakComponents } =
    React.useContext(customWidgetContext);
  const { InstanceGridForCustomWidget, Container, Spinner, Box, Dropdown } =
    protrakComponents;
  const { useTypeLayoutConfig, useProtrakApi, protrakApiClient } = protrakUtils;
  let configuration = pageContext?.currentWidgetConfig;
  configuration = {
    ...configuration,
    fields: [
      {
        fieldType: "Attribute",
        attributeType: "DateTime",
        label: "CreatedDate",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Created",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "User",
        label: "Creator",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Creator",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "Text",
        label: "Description",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Description",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Actions",
        attributeType: "Text",
        label: "Actions",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Actions",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [
          {
            id: "8321f283-e0aa-4896-a101-b05400511fcc",
            actionType: "PromoteAction",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
          {
            id: "32021261-2a40-4b0a-8c7b-b05400511fcc",
            actionType: "QuickEdit",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
          {
            id: "5da2b23d-9018-4bff-9135-b05400511fcc",
            actionType: "Edit",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
          {
            id: "31662aa6-df93-44b4-a4e0-b05400511fcc",
            actionType: "Delete",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
          {
            id: "b498da58-ab7b-47a5-8fb5-b05400511fcc",
            actionType: "ViewDetails",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
          {
            id: "4ab571e7-c51c-43be-a7d1-b05400511fcc",
            actionType: "OpenInNewTab",
            relationDirection: "To",
            canCreateRelatedType: false,
          },
        ],
        formatConditions: [],
      },
      {
        fieldType: "Name",
        attributeType: "Text",
        label: "Name",
        isVisible: true,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "name",
        isRequired: true,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "DateTime",
        label: "ModifiedDate",
        isVisible: true,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "modified",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Lifecycle",
        attributeType: "Lifecycle",
        label: "Lifecycle",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Lifecycle",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "Text",
        label: "GeofenceCenter",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "GeofenceCenter",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "Text",
        label: "GeofenceRadius",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "GeofenceRadius",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "Picklist",
        label: "Action Type",
        isVisible: true,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "taskActionType",
        isRequired: false,
        options: [
          {
            name: "ManageContent",
            displayName: "Manage Content",
            disabled: false,
          },
          {
            name: "KeyRotationRequest",
            displayName: "Key Rotation",
            disabled: false,
          },
          {
            name: "SecurityAlert",
            displayName: "Security Alerts",
            disabled: false,
          },
          {
            name: "ConfigurationArtifact",
            displayName: "Configuration Artifacts",
            disabled: false,
          },
          {
            name: "UpdatePolicy",
            displayName: "Update Policies",
            disabled: false,
          },
          {
            name: "BatchCertificate",
            displayName: "Batch Certificates",
            disabled: false,
          },
        ],
        regExErrorMessage: "",
        isMultiselect: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
        editor: "Default",
        renderer: "Default",
      },
      {
        fieldType: "State",
        attributeType: "Text",
        label: "State",
        isVisible: true,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "State",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
      {
        fieldType: "Attribute",
        attributeType: "User",
        label: "Modifier",
        isVisible: false,
        isEditable: false,
        isRelatedTypeGeolocationAttribute: false,
        width: 0,
        attributeName: "Modifier",
        isRequired: false,
        allowValueCaptureFromScan: false,
        actionSettingsShowAs: "Default",
        dashboardLayoutWidgetActionSettings: [],
        formatConditions: [],
      },
    ],
  };

  return (
    <InstanceGridForCustomWidget
      key={"InstanceGridForCustomWidget"}
      isStandardGrid={false}
      configuration={configuration}
      canCreateInstance={"true"}
      numberOfLoadingRows={10}
      baseUrl={"programs/DynamicTypeCustomDashboard/executeCommonProgram"}
      widgetView={'GridV2'}
    />
  );
}

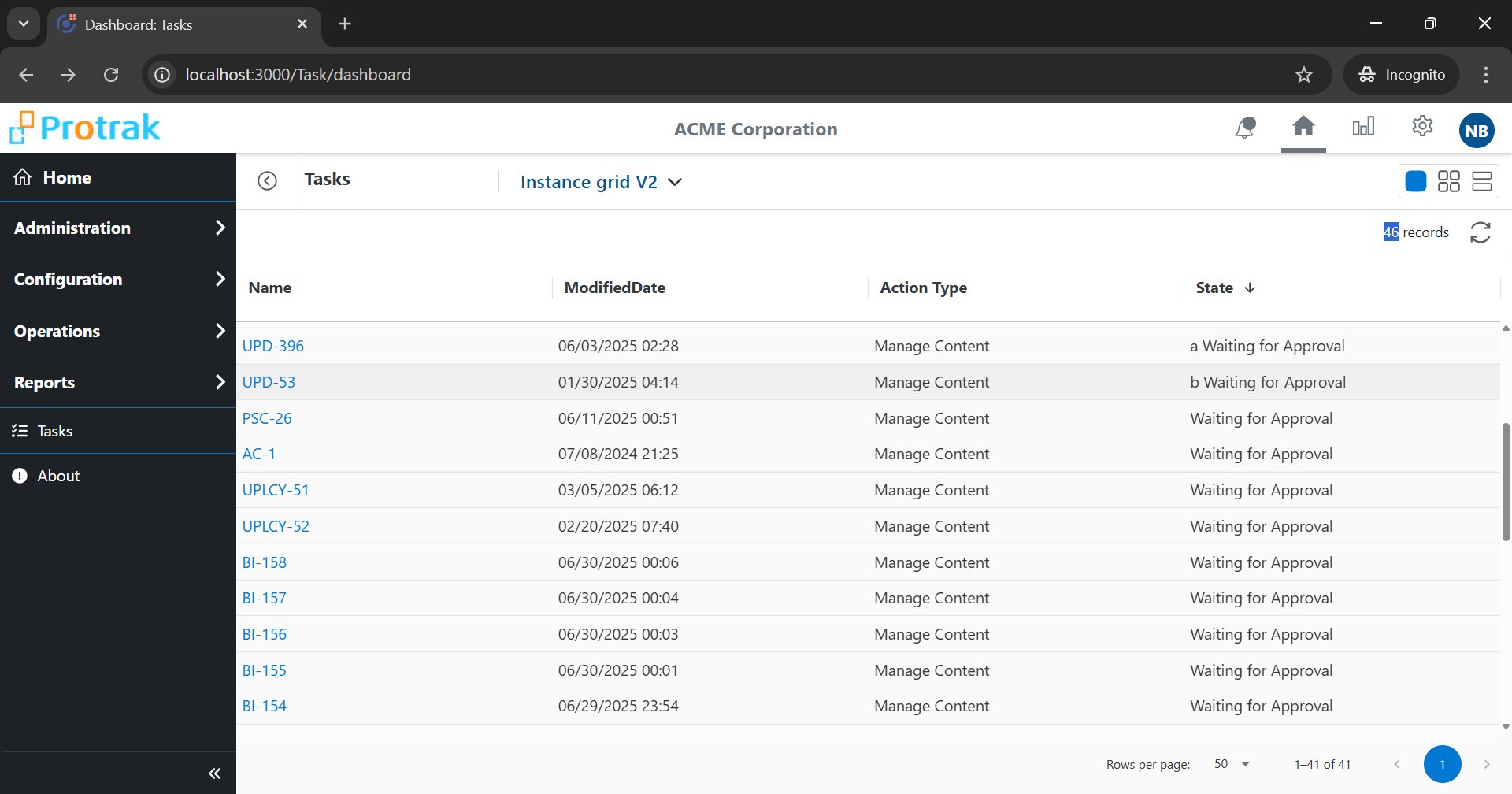

UI: InstanceGridV2

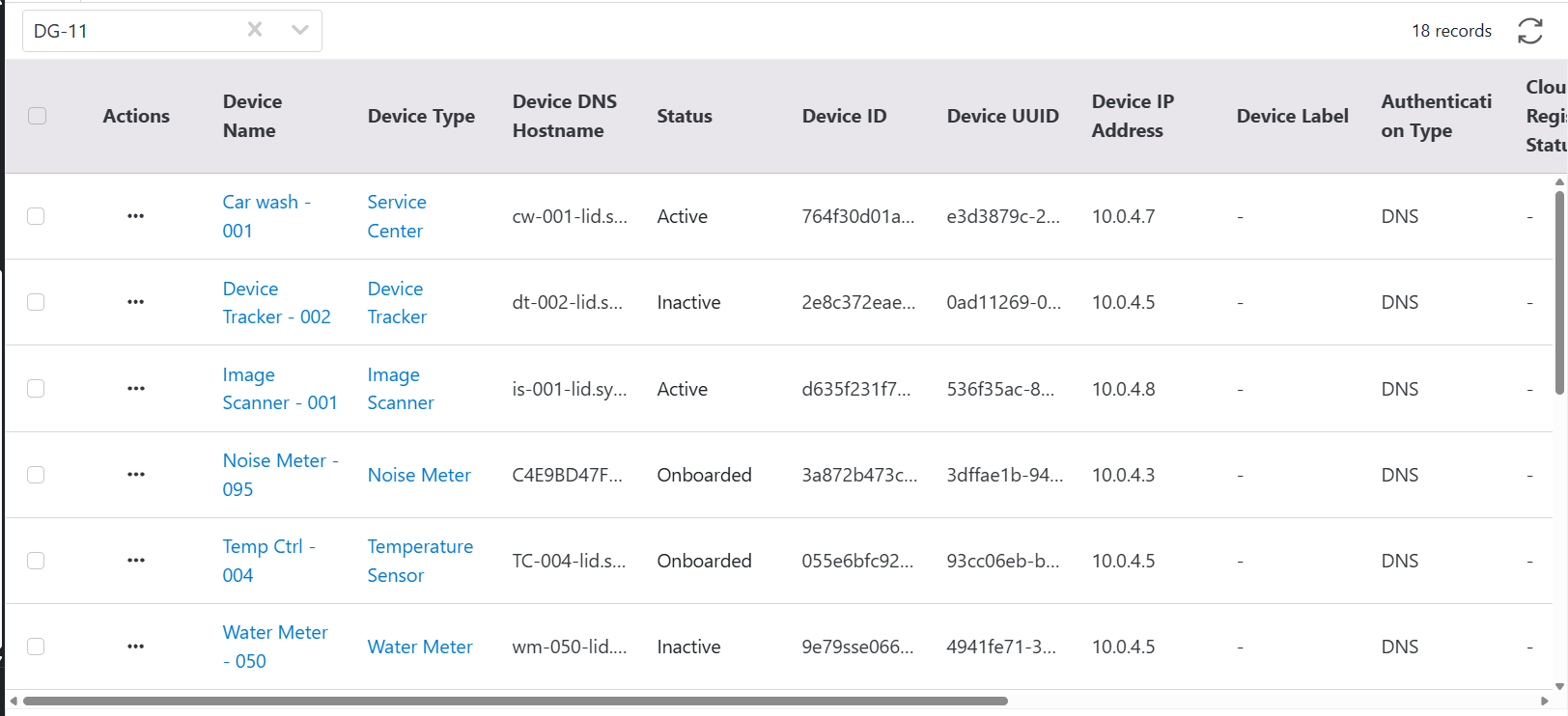

Usage Example 1 - Dashboard layout

function MemberDeviceInstanceGridForDashboardLayout(pageContext) {
    const { protrakUtils, protrakComponents } =
      React.useContext(customWidgetContext);
    const { InstanceGridForCustomWidget, Container, Spinner, Box, Dropdown } =
      protrakComponents;
    const { useTypeLayoutConfig, useProtrakApi, protrakApiClient } = protrakUtils;
    const [selectedOption, setSelectedOption] = React.useState({});
    const [baseUrl, setBaseUrl] = React.useState(
      'programs/SolrConnectorCommonProgram/executeCommonProgram'
    );
    const [picklistOptions, setPicklistOptions] = React.useState({
      label: '',
      value: '00000000-0000-0000-0000-000000000000',
    });

    const __getInstanceDetailsPromise__ = React.useCallback(
      async ({ protrakApiClient, authContext }) => {
        const apiUrl =
          'instances?attributes[0]=Actions&attributes[1]=Name&attributes[3]=Modified&attributes[4]=Created&attributes[5]=TrackingInfo&attributes[6]=QRCode&getAllowedOperations=true&getAllowedActions=true&sortBy=Modified&isSortByDescending=true&instanceTypeName=DynamicGroups&getOnlyActionableInstances=false&skip=0&take=9999';

        let res = await protrakApiClient(apiUrl, {}, authContext);
        return res;
      },
      []
    );

    const { state: response } = useProtrakApi({
      promiseFn: __getInstanceDetailsPromise__,
      protrakApiClient,
    });

    React.useEffect(() => {
      if (response.isFulfilled && response.data && response.data.items) {
        const formattedItems = response.data.items.map((item) => ({
          label: item.name,
          value: item.id,
        }));

        setPicklistOptions(formattedItems);
      }
    }, [response.isFulfilled, response.data]);

    const dashboardConfig = useTypeLayoutConfig('MemberDevice', 'dashboard');
    let configuration = {};

    if (
      (dashboardConfig.isLoading && !dashboardConfig.data) ||
      response.isLoading
    ) {
      return (
        <Container>
          <Spinner />
        </Container>
      );
    }

    if (dashboardConfig.isFulfilled && dashboardConfig.data) {
      const widget = dashboardConfig.data.widgets.find(function (widget) {
        return widget.name == 'MemberDeviceDashboard';
      });
      const objToPush = {
        canCreateInstance: dashboardConfig.data.canCreateInstance,
        typeName: dashboardConfig.data.typeName,
        typePluralName: dashboardConfig.data.typePluralName,
        typeSingularName: dashboardConfig.data.typeSingularName,
      };
      configuration = { ...widget, ...objToPush };
    }

    if (dashboardConfig.isError || response.isError) {
      return (
        <Container>
          <h3>Server error!</h3>
        </Container>
      );
    }

    return (
      <InstanceGridForCustomWidget
        key={
            selectedOption
            ? selectedOption.value
            : "MemberDeviceInstanceGridForDashboardLayout"
        }
        isStandardGrid={false}
        configuration={configuration}
        canCreateInstance={'true'}
        numberOfLoadingRows={10}
        baseUrl={baseUrl}
        programData={selectedOption && selectedOption.value}
        isFilterVisible={false}
        otherUIComponents={() => {
          return (
            <Box width={'40%'} direction={'column'} marginLeft={'1rem'}>
              <Dropdown
                defaultValues={selectedOption}
                placeholder={'Select Dynamic Group'}
                picklistOptions={picklistOptions}
                onValueChange={(option) => {
                  if (option === null) {
                    setSelectedOption({
                      label: '',
                      value: '00000000-0000-0000-0000-000000000000',
                    });
                    setBaseUrl(
                      'programs/SolrConnectorCommonProgram/executeCommonProgram'
                    );
                  } else {
                    setSelectedOption(option);
                    setBaseUrl(
                      'programs/SolrConnectorCommonProgram/executeCommonProgram'
                    );
                  }
                }}
                isMultiselect={false}
                isClearable={true}
              />
            </Box>
          );
        }}
      />
    );
  }


UI: InstanceGrid

Usage Example 2 : View layout

function DynamicGroupsInstanceGridForViewLayout(pageContext) {
  const { protrakUtils, protrakComponents } =
    React.useContext(customWidgetContext);
  const {
    InstanceGridForCustomWidget,
    Button,
    ButtonEnums,
    Container,
    Spinner,
  } = protrakComponents;
  const { useTypeLayoutConfig } = protrakUtils;
  const [baseUrl, setBaseUrl] = React.useState(
    'programs/SolrConnectorCommonProgram/executeCommonProgram'
  );
  const [programData, setProgramData] = React.useState(
    '00000000-0000-0000-0000-000000000000'
  );
  const dashboardConfig = useTypeLayoutConfig('MemberDevice', 'dashboard');
  let configuration = {};

  if (dashboardConfig.isLoading && !dashboardConfig.data) {
    return (
      <Container>
        <Spinner />
      </Container>
    );
  }

  if (dashboardConfig.isFulfilled && dashboardConfig.data) {
    const widget = dashboardConfig.data.widgets.find(function (widget) {
      return widget.name == 'MemberDeviceDashboard';
    });
    const objToPush = {
      canCreateInstance: dashboardConfig.data.canCreateInstance,
      typeName: dashboardConfig.data.typeName,
      typePluralName: dashboardConfig.data.typePluralName,
      typeSingularName: dashboardConfig.data.typeSingularName,
    };
    configuration = { ...widget, ...objToPush };
  }

  return (
    <InstanceGridForCustomWidget
      isStandardGrid={false}
      configuration={configuration}
      canCreateInstance={pageContext.layoutConfig.canCreateInstance}
      isFilterVisible={false}
      baseUrl={baseUrl}
      programData={programData}
      otherUIComponents={() => {
        return (
          <Button
            text={'Evaluate Rule'}
            outline
            appearance={ButtonEnums.Appearance.Transparent}
            size={ButtonEnums.Size.Small}
            onClick={() => {
              setBaseUrl(
                'programs/SolrConnectorCommonProgram/executeCommonProgram'
              );
              setProgramData(pageContext.instanceId);
            }}
            style={{ marginLeft: '1rem' }}
          />
        );
      }}
    />
  );
}

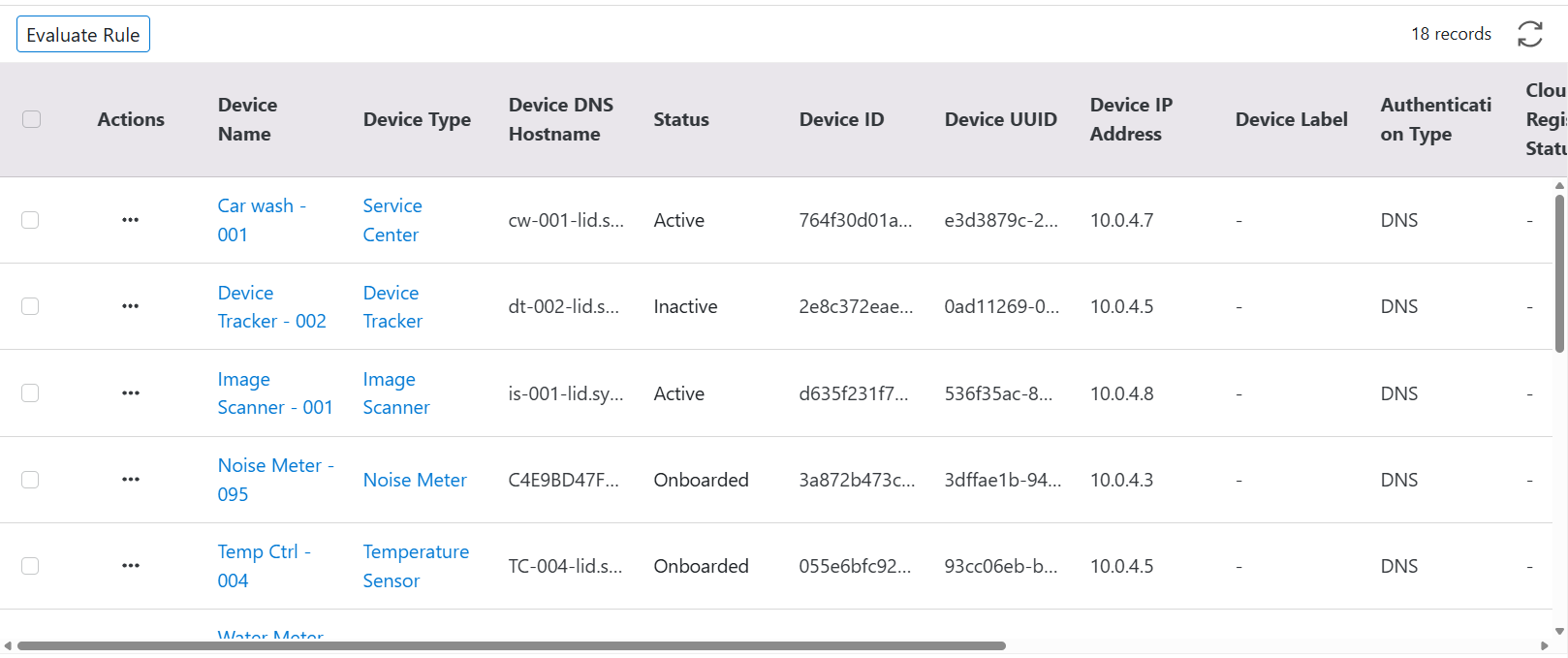

UI: InstanceGrid
